Code within DRAW

What is the Code Editor?​

The Code Editor allows to CODE simple Coded Function or Coded Action directly in DRAW. This is very useful for complex logic that can be cumbersome to do in a visual way, but not that complex for it to be done in traditional CODE:

  • Small and quick logic (example below)
  • Complex if/else logic
  • Functional map/reduce/filter/forEach

How to use the Code Editor?​

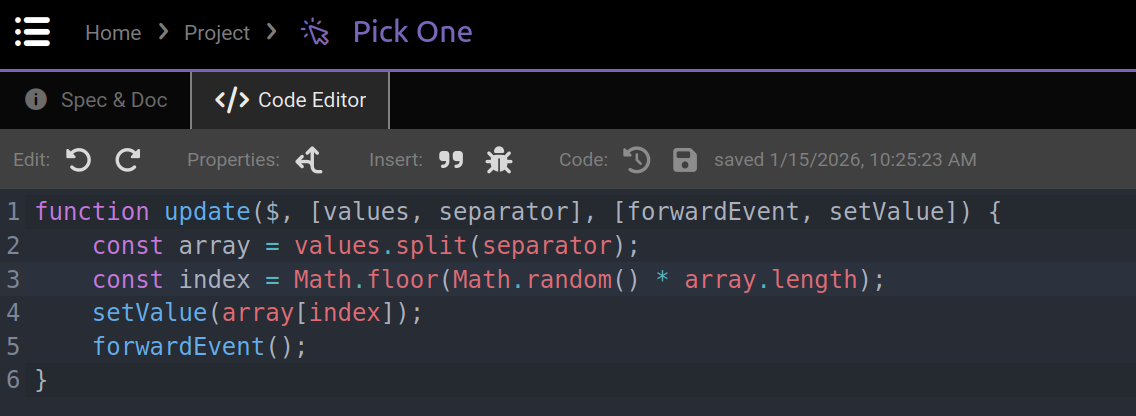

To use the Code Editor, simply create a new Coded Function or Coded Action and enter it. A new tab called Code Editor is now available alongside the Spec & Doc.

In this new tab you can edit the code directly, note that the function signature must still be done in the Spec & Doc. Once you are happy with the code, just click the save button (or press Ctrl+S) to keep it.

The toolbar buttons in order:

  • Undo the last change
  • Redo the last undo
  • Toggle async/await
  • Insert `` in the code (not supported with the keyboard)
  • Insert a debugger; statement
  • Reload the saved code (undo all changes)
  • Save the changes

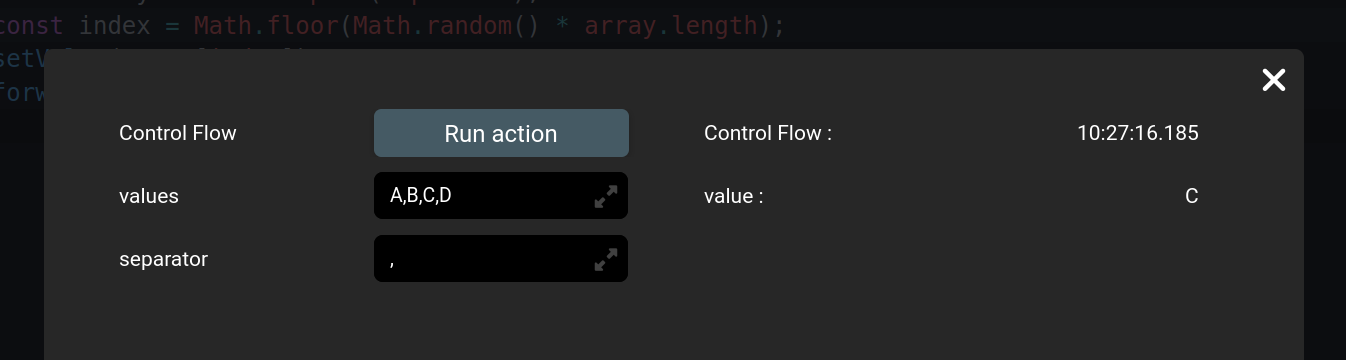

Run the code directly in DRAW​

Simply press the Run icon button at the top-right of DRAW, like you would with any brick. Note that the current changes are executed, however in a running app only the saved code is executed.

Features​

  • Code edition
  • Syntax highlighting
  • Synchronization with Spec & Doc
  • Async function support

Limitations​

  • Typescript not available
  • Existing coded bricks are not editable this way
  • Only simple Javascript is available

Roadmap​

The Code Editor can improve in many ways, a few are listed here:

  • Editor: autocompletion, linter, quality-of-life features
  • Collaborative work: multiple users working on the same code
  • Olympe API: can code queries and transactions, call other bricks
  • Side-panels: versioning, unit testing, AI prompt
  • External libraries: can import and use other libraries
  • Lifecycle: can code other method of the brick (e.g: setupExecution)
  • Visual Component: can code Visual Component too

Don't hesitate to contact us at support@olympe.io if you want to push for one of those feature or if you have any other ideas.
